Product Name: Coated Tent Tarpaulin
Product Specification: 300*300D/40*42, 500*500D/18*21, 1000*1000D/18*18, 1000*1000D/20*20, 1000*1000D/23*23, 2000*2000D/15*15, etc.
Weight (GSM): 360G, 400G, 500G, 610G, 800G, 1050G, etc.
Product Features:
*Lightweight
*High Strength
*Novel Appearance
*Bright Color
*Self-Cleaning
*Anti-Fouling
*Anti-Aging
*Good Color Fastness
*Long Service Life
*The polyvinyl chloride can be treated to have certain properties such as flame retardant, cold resistance, skid resistance, UV protection, PVDF, photocatalysis and environmental protection to satisfy customers' special requests
Items/Base Fabric | 300*300D 40*42 | 500*500D 18*12 | 1000*1000D 18*18 | 1000*1000D 20*20 | 1000*1000D 23*13 | 2000*2000D 15*15 | Test Method | |
| Weight (GSM) | 350-510 | 400-600 | 450-600 | 500-1000 | 500-1100 | 800-1200 | DIN53352 | |
| Tensile Strength (N/5CM) | L | 1110 | 1500 | 1900 | 2500 | 2600 | 4000 | DIN53354 |
| W | 1200 | 1400 | 1800 | 2200 | 2300 | 3500 | ||
| Tearing Strength (N/5CM) | L | 60 | 210 | 185 | 230 | 250 | 520 | DIN53363 |
| W | 70 | 200 | 180 | 210 | 220 | 450 | ||
| Adhesion (N) | 70 | 80 | 80 | 90 | 100 | 100 | DIN53357 | |
| Light Fastness (Except White) | 6-7 | |||||||
| FR Certification (Optional) | B1/B2/M1/M2/NFPA-701/DIN75200 | |||||||
| Environmental (Optional) | REACH/ROHS/EN71-3/ASTM-F963 | |||||||
| Lacquering | 3555 (Acrylic)/3483 (Acrylic)/7584 (PVDF) | |||||||
| Temperature Resistance | -30ºC-+70ºC | |||||||
| Width (M) | 0.1-3.20M | |||||||
All our Technical Characteristics are Referential. | ||||||||
Detailed Images
Inspection Process
Certification

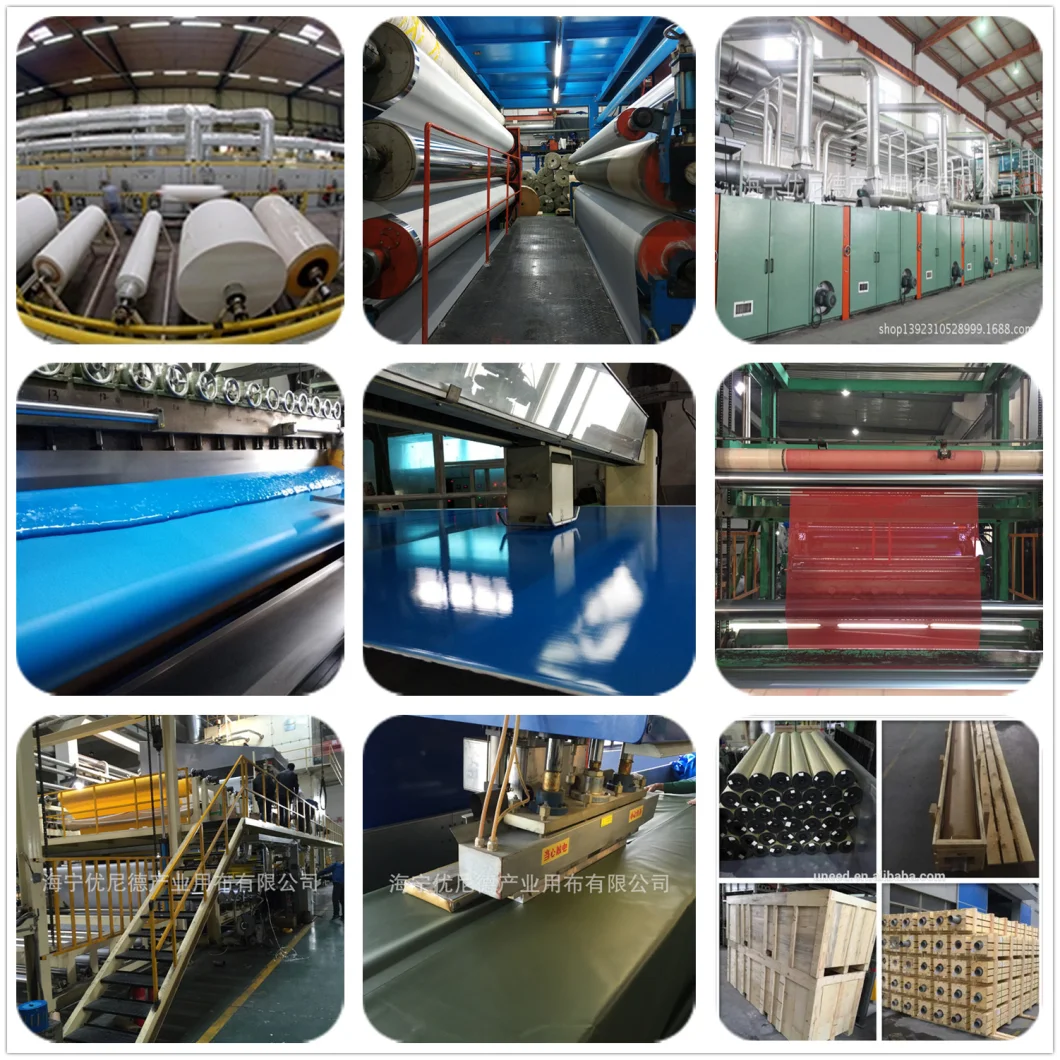

Our PVC Mesh Fabric Machine
Packing & Delivery
Related Products

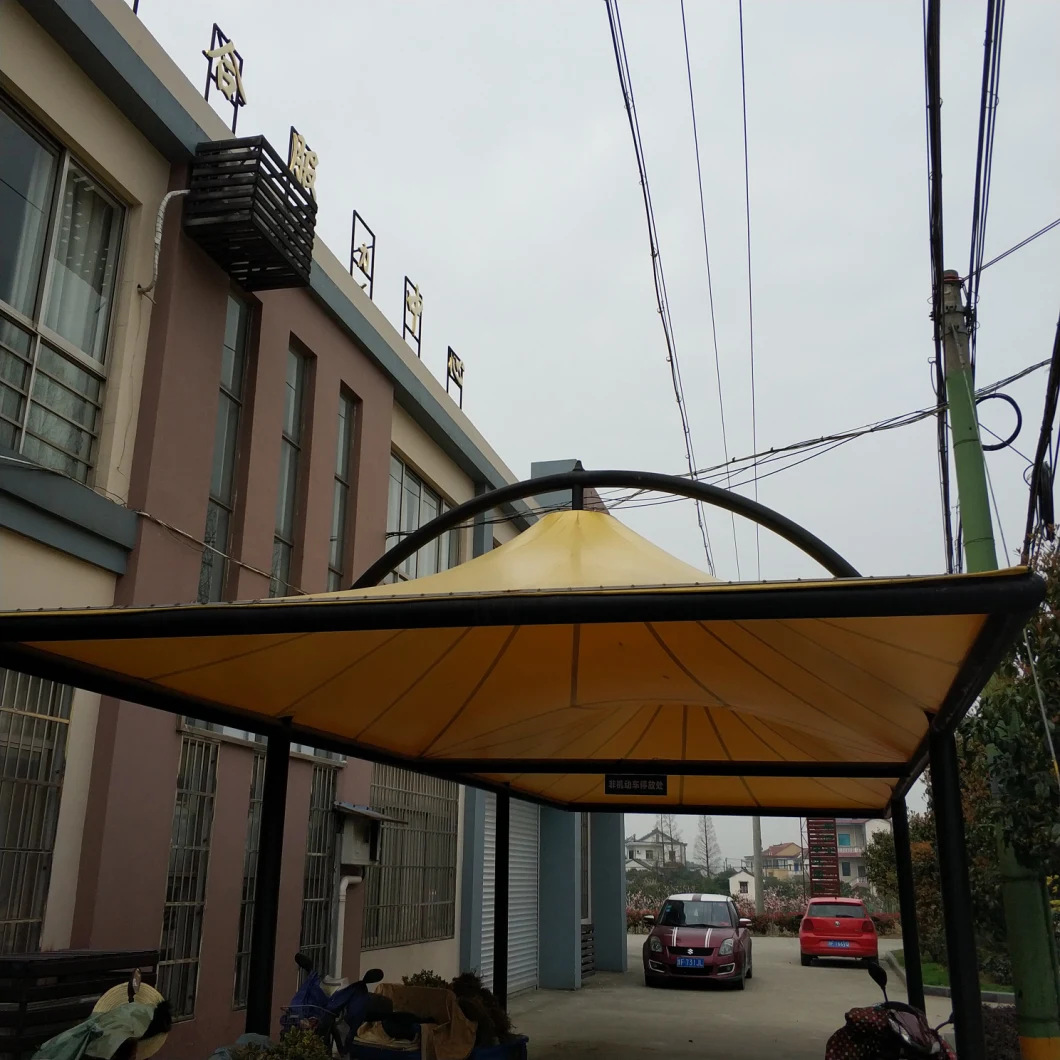

Actual application picture
